Grundfos
Prix habituel
€1.731,20 EUR
Prix habituel
€2.164,00 EUR
Prix promotionnel
€1.731,20 EUR
Prix unitaire
/
par
Taxes non incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

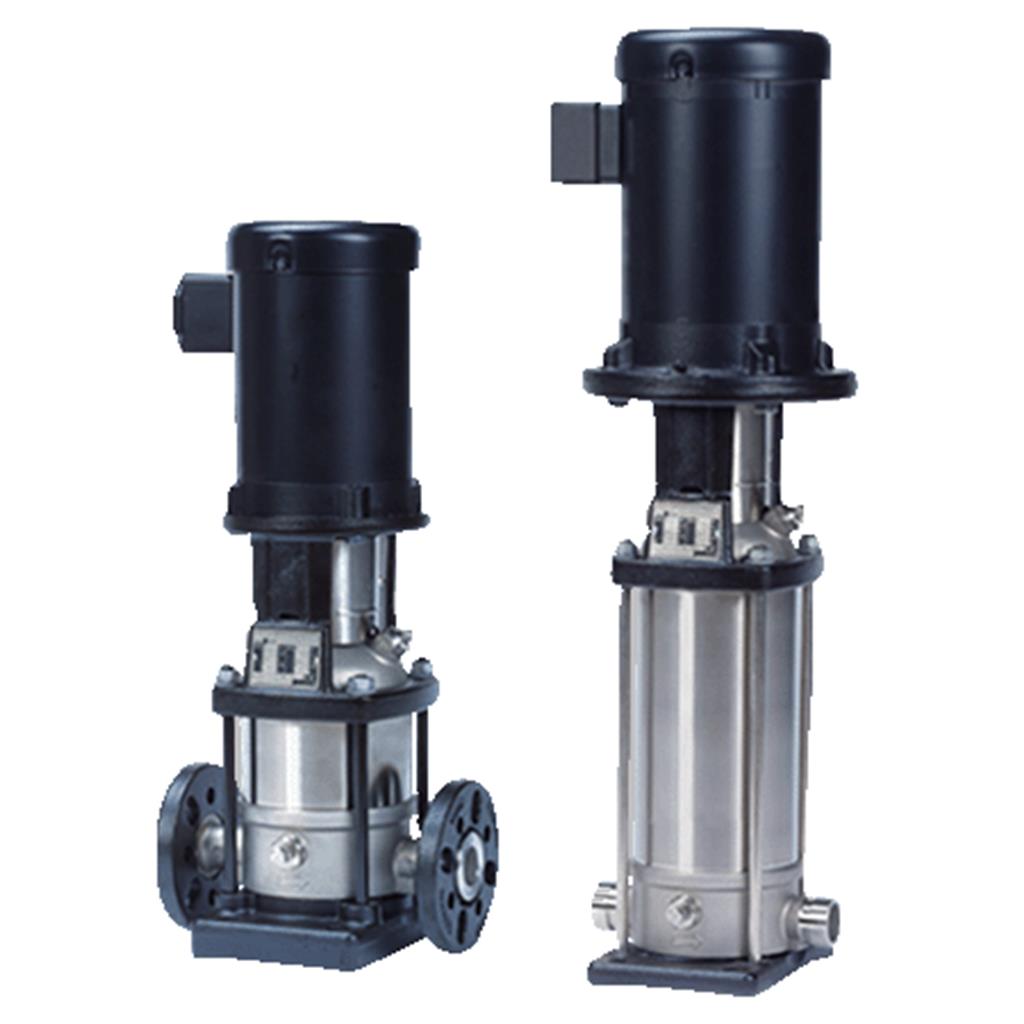

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 3443 rpm |

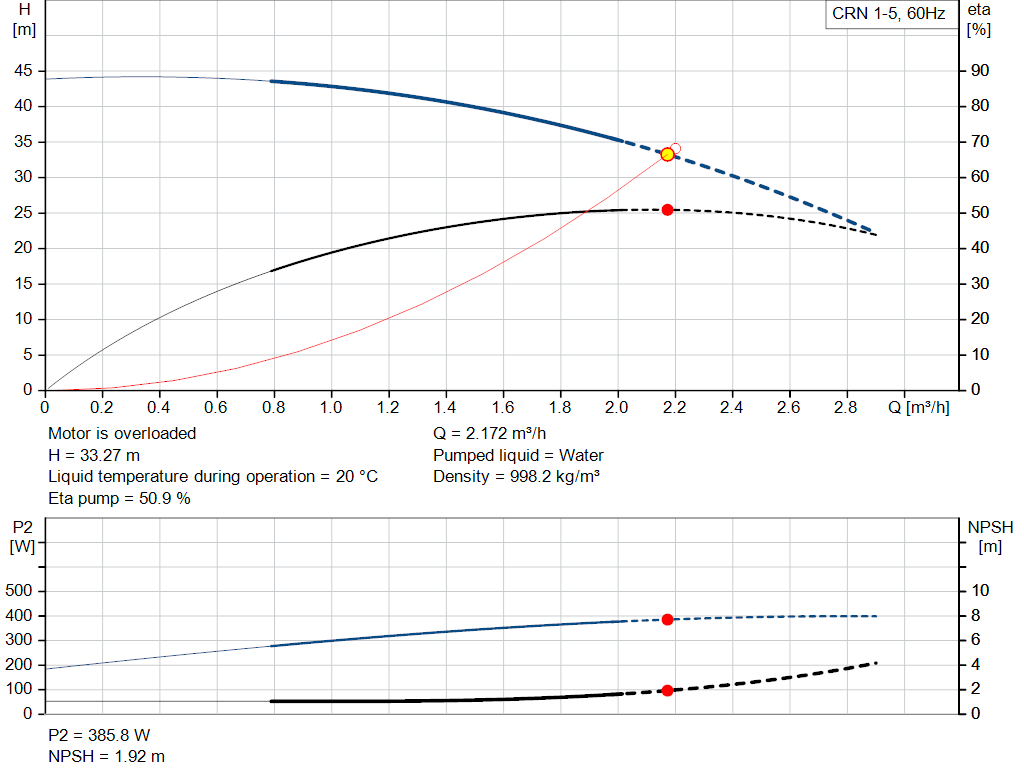

| Rated flow: | 2.2 m³/h |
| Rated head: | 34.1 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQE |
| Code for shaft seal: | HQQE |
| Approvals: | CURUS |
| Approvals for drinking water: | NSF61 |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Stainless steel |
| EN 1.4408 | |
| AISI 316 | |
| Impeller: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 40 °C |
| Maximum operating pressure: | 25 bar |
| Max pressure at stated temp: | 25 bar / 120 °C |
| 25 bar / -20 °C | |
| Type of connection: | DIN / ANSI / JIS |
| Size of inlet connection: | DN 25/32 |
| 1 1/4 inch | |
| Size of outlet connection: | DN 25/32 |
| 1 1/4 inch | |
| Pressure rating for connection: | PN 25 |
| Flange rating inlet: | 300 lb |
| Flange size for motor: | 56C |
| Electrical data: | |
| Motor standard: | NEMA |
| Motor type: | BALDOR |
| Rated power - P2: | 0.37 kW |
| Power (P2) required by pump: | 0.37 kW |
| Mains frequency: | 60 Hz |

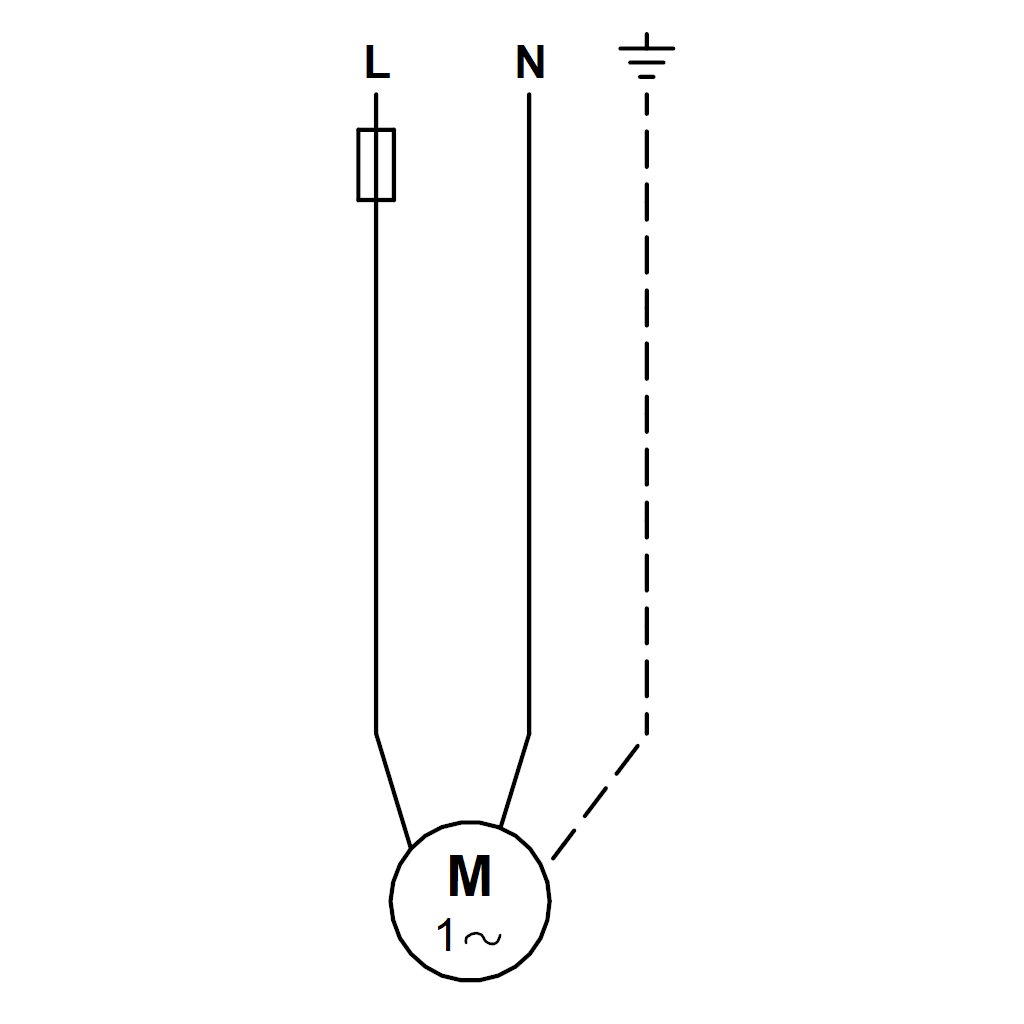

| Rated voltage: | 1 x 115/230 V |
| Service factor: | 1.60 |
| Rated current: | 7.4/3.7 A |
| Rated speed: | 3450 rpm |
| IE efficiency: | 62% |
| Motor efficiency at full load: | 62 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | IP54 |
| Insulation class (IEC 85): | B |
| Motor No: | 85700002 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Net weight: | 26.8 kg |
| Gross weight: | 31.7 kg |
| Shipping volume: | 0.14 m³ |
