NB 100-160/169 BAF2AESBAQEFW5 [98757157]
NB 100-160/169 BAF2AESBAQEFW5 [98757157]
Grundfos
Prix habituel
€2.848,80 EUR
Prix habituel
€3.561,00 EUR
Prix promotionnel
€2.848,80 EUR
Prix unitaire
/
par
Taxes non incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

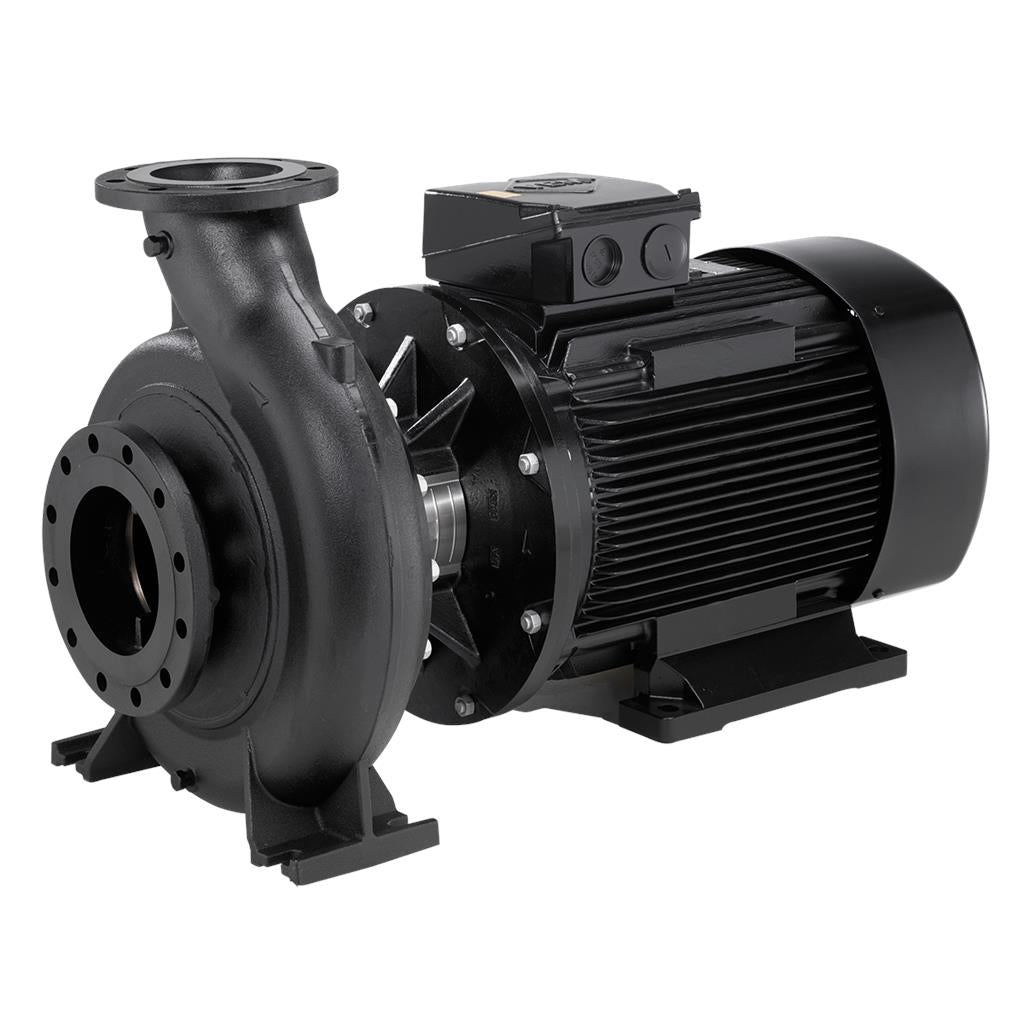

La pompe centrifuge non auto-amorçante, monocellulaire, est conçue selon la norme ISO 5199 avec des dimensions et une performance nominale conformes à la norme EN 733 (10 bars). Les brides sont PN 16 avec des dimensions conformes à EN 1092-2. La pompe possède un orifice d'aspiration axial, un orifice de refoulement radial, un arbre horizontal et une conception à extraction arrière qui permet de retirer le moteur, la lanterne, le flasque et la roue sans démonter le corps de pompe ni la tuyauterie. La garniture à soufflet en élastomère non équilibrée est conforme à la norme DIN EN 12756. La pompe est montée en monobloc sur un moteur ventilé asynchrone.
Specs Table
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 945 rpm |

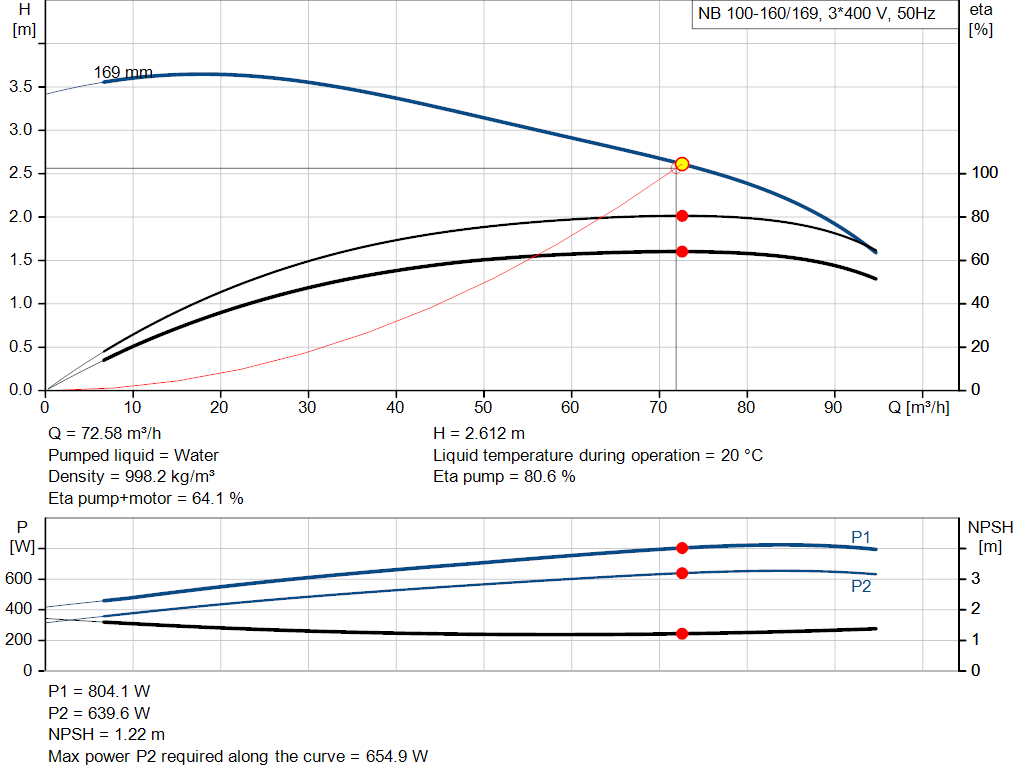

| Rated flow: | 71.9 m³/h |
| Rated head: | 2.563 m |
| Actual impeller diameter: | 169 mm |
| Nominal impeller diameter: | 160 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BAQE |
| Code for shaft seal: | BAQE |
| Curve tolerance: | ISO9906:2012 3B2 |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM class 35 | |
| Wear ring: | Brass |
| Impeller: | Cast iron |
| EN-GJL-200 | |
| ASTM class 30 | |
| Internal pump house coating: | CED |
| Shaft: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-2 |

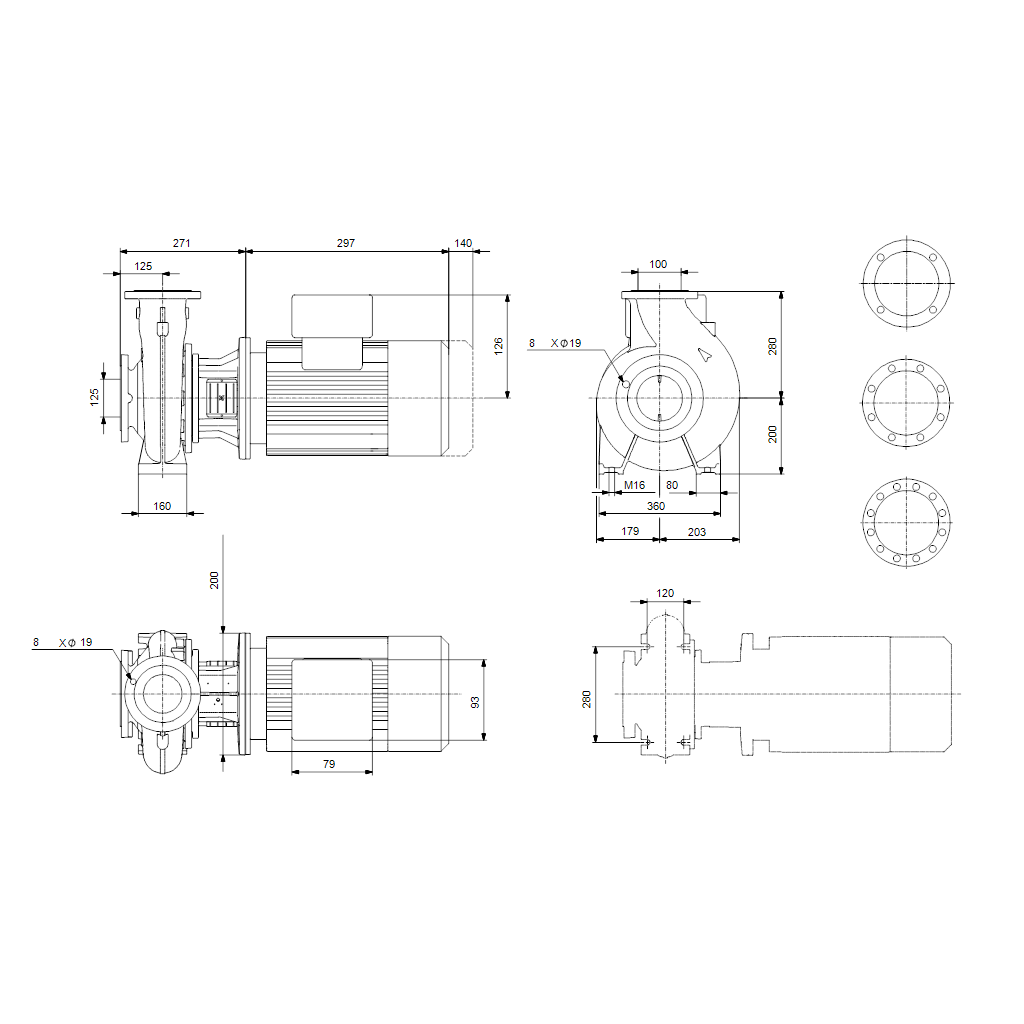

| Size of inlet connection: | DN 125 |
| Size of outlet connection: | DN 100 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |
| Electrical data: | |
| Motor type: | INNOMOTICS_SIEMENS |
| Rated power - P2: | 0.75 kW |
| Mains frequency: | 50 Hz |

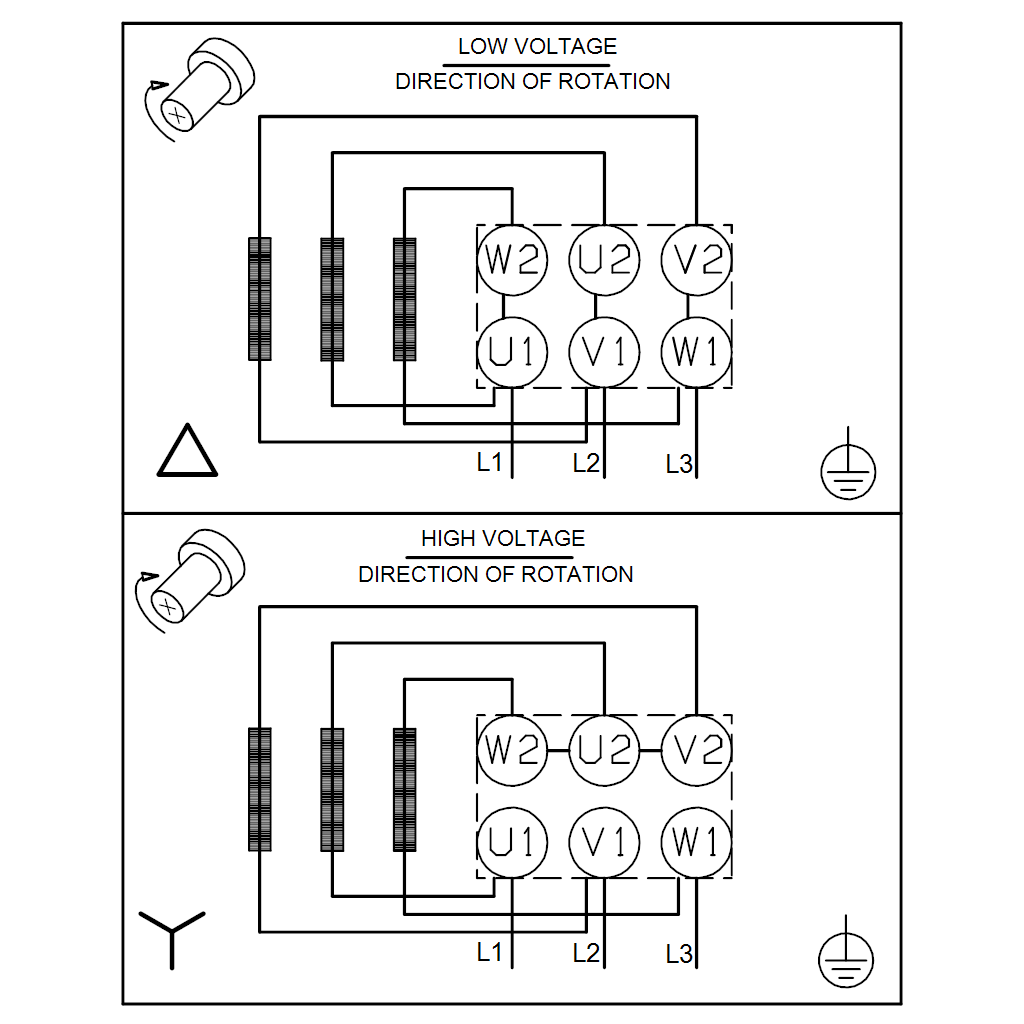

| Rated voltage: | 3 x 220-240D/380-420Y V |
| Rated current: | 3.4/1.96 A |
| Starting current: | 460 % |
| Cos phi - power factor: | 0.7 |
| Rated speed: | 945 rpm |
| IE efficiency: | IE3 78,9% |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 78.9 % |
| Motor efficiency at 3/4 load: | 80 % |
| Motor efficiency at 1/2 load: | 78.8 % |
| Number of poles: | 6 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 83W02204 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 76 kg |
| Gross weight: | 93 kg |
| Shipping volume: | 0.315 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 84137051 |
| Language on pump nameplate: | GB |
