MS6000RESWT40 [98735498]
MS6000RESWT40 [98735498]
Grundfos
Prix habituel
€5.163,20 EUR
Prix habituel
€6.454,00 EUR
Prix promotionnel
€5.163,20 EUR
Prix unitaire
/
par
Taxes non incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

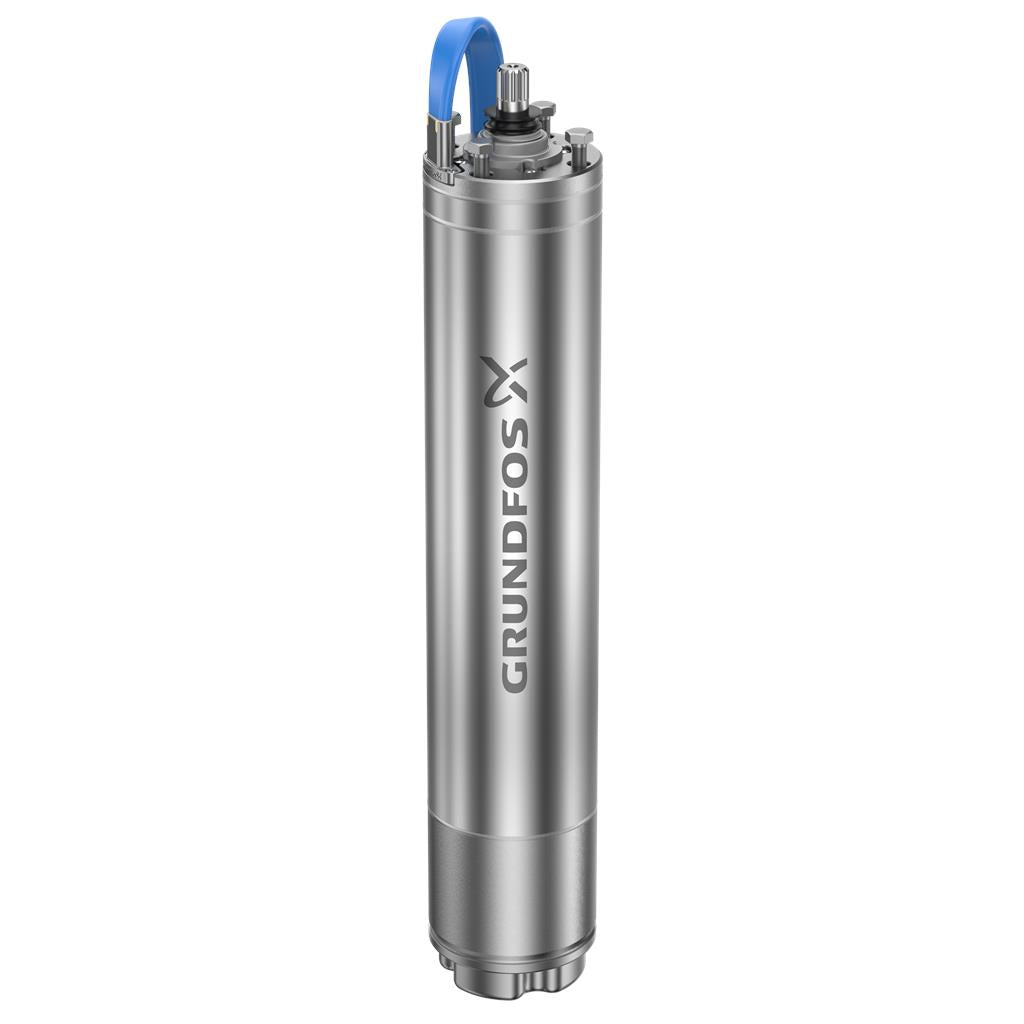

Moteur 3-phasé à rotor noyé avec protection anti-sable, paliers lubrifiés par liquide et diaphragme équilibré à la pression.
Specs Table
| Liquid: | |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Technical: | |
| Shaft seal for motor: | SIC/SICFKM |
| CE approved (Yes/No): | Y |
| Motor version: | T40 |
| Materials: | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4539 | |
| AISI 904L | |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Motor diameter: | 6 inch |
| Electrical data: | |
| Motor type: | MS6000 |
| Rated power - P2: | 9.2 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Voltage tolerance: | +6/-10 % |
| Rated current: | 21.8-21.2-21.2 A |
| Starting current: | 480-520-550 % |
| Cos phi - power factor: | 0.84-0.82-0.78 |
| Rated speed: | 2850-2870-2880 rpm |
| Rated full-load torque: | 31 Nm |
| Locked-rotor torque: | 150-170-190 % |
| Breakdown torque: | 230-270-290 % |
| Moment of inertia: | 0.0051 kg m² |
| Axial load max: | 27 kN |

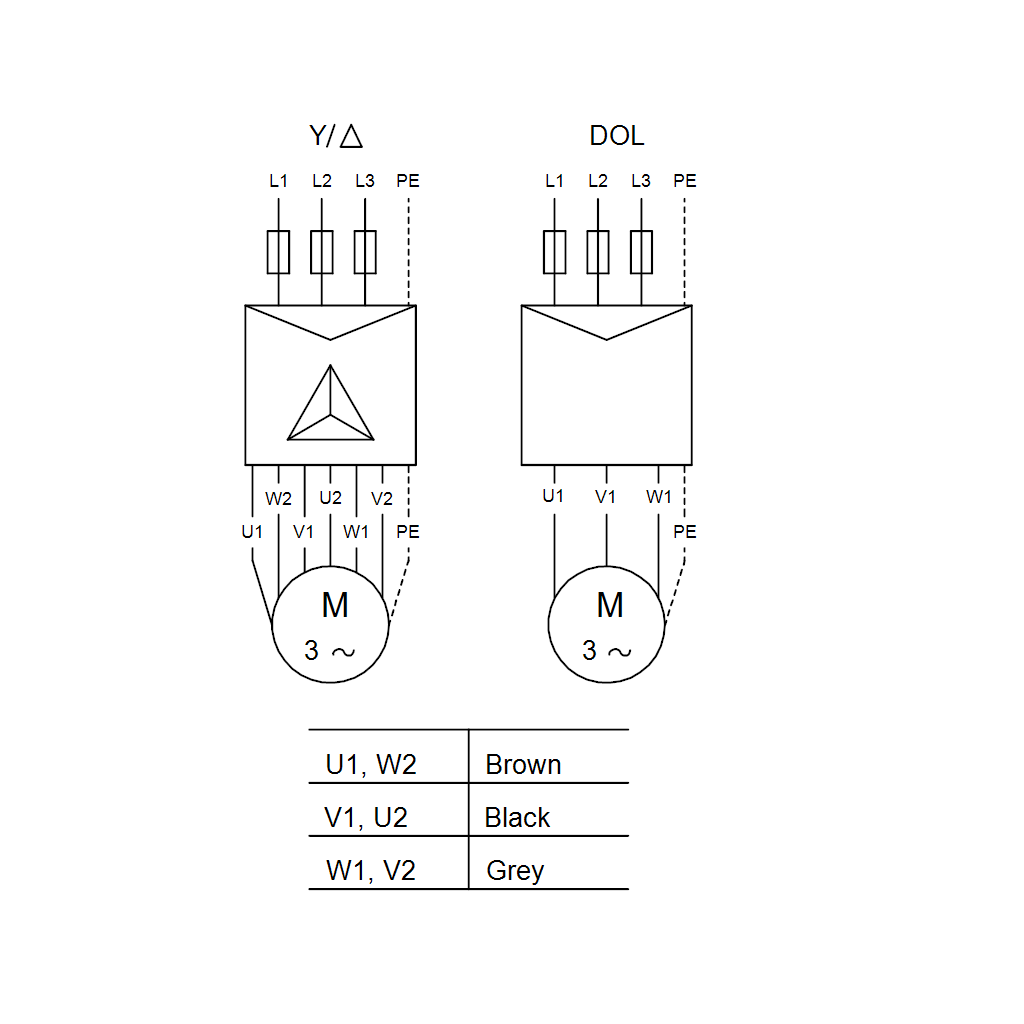

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in temp. transmitter: | yes |
| Winding resistance: | 1.480 Ohm |
| Windings: | Enamelled |
| Others: | |
| Net weight: | 43 kg |
| Country of origin: | HU |
| Custom tariff no.: | 85015230 |
