MS4000 [92959950]
MS4000 [92959950]
Grundfos
Prix habituel
€1.120,80 EUR
Prix habituel
€1.401,00 EUR
Prix promotionnel
€1.120,80 EUR
Prix unitaire
/
par
Taxes non incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

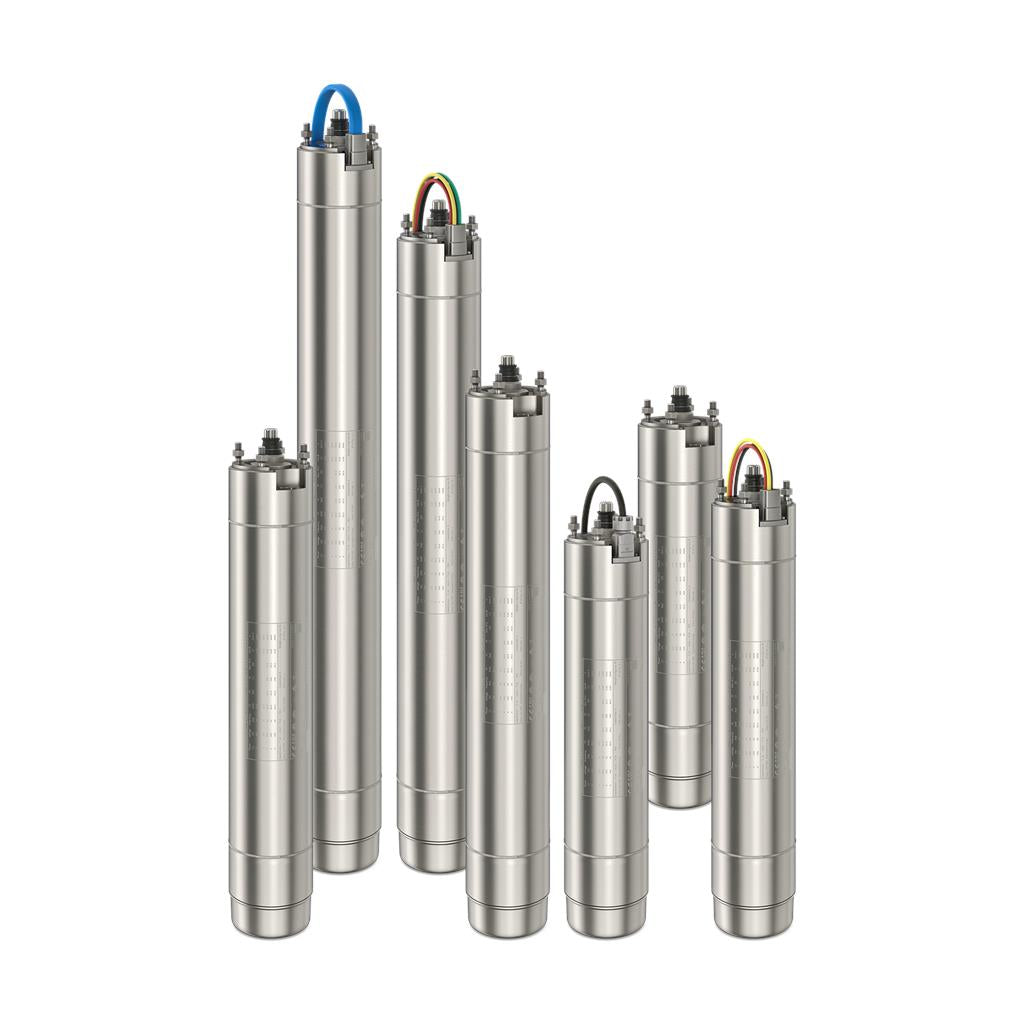

Moteur 3-phasé à rotor noyé avec protection anti-sable, paliers lubrifiés par liquide et diaphragme équilibré à la pression.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CCSAUS,C_UL_US_NSF372 |
| Model: | C |
| Motor version: | T40 |

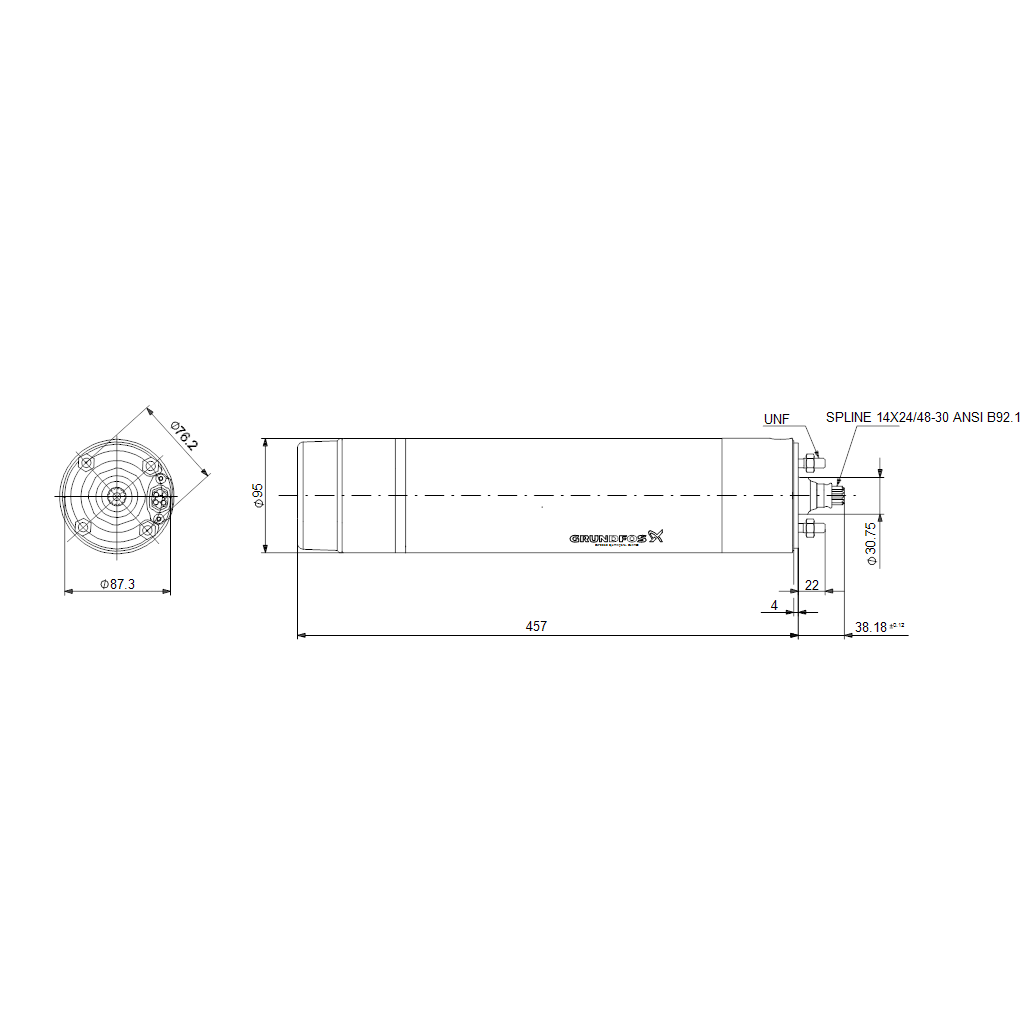

| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | UNF |
| Motor diameter: | 4 inch |
| Electrical data: | |
| Motor type: | MS4000 |
| Rated power - P2: | 2.2 kW |
| KVA code: | J |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 208-220-230 V |
| Voltage tolerance: | +6/-10 % |
| Service factor: | 1.15 |
| Rated current: | 10.8-10.6-11.1 A |
| Maximum current consumption - service factor: | 11.9-11.4-11.6 A |
| Starting current: | 440-490-490 % |
| Cos phi - power factor: | 0.84-0.80-0.74 |
| Rated speed: | 3440-3460-3480 rpm |
| Speed - service factor: | 3410-3440-3460 rpm |
| Rated full-load torque: | 6-6-6 Nm |
| Locked-rotor torque: | 150-170-190 % |
| Breakdown torque: | 14.3-16.2-18.1 Nm |
| Moment of Inertia: | 0.0014 kg m² |
| Maximum axial load: | 450 kg |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | No |
| Winding resistance: | 2.040 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 16 kg |
| Gross weight: | 16 kg |
| Shipping volume: | 0.161 m³ |
