CM 15-2 A-R-I-E-AVBE F-A-A-N [99088779]
CM 15-2 A-R-I-E-AVBE F-A-A-N [99088779]
Grundfos
Prix habituel
€2.138,40 EUR
Prix habituel
€2.673,00 EUR
Prix promotionnel
€2.138,40 EUR
Prix unitaire
/
par
Taxes non incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

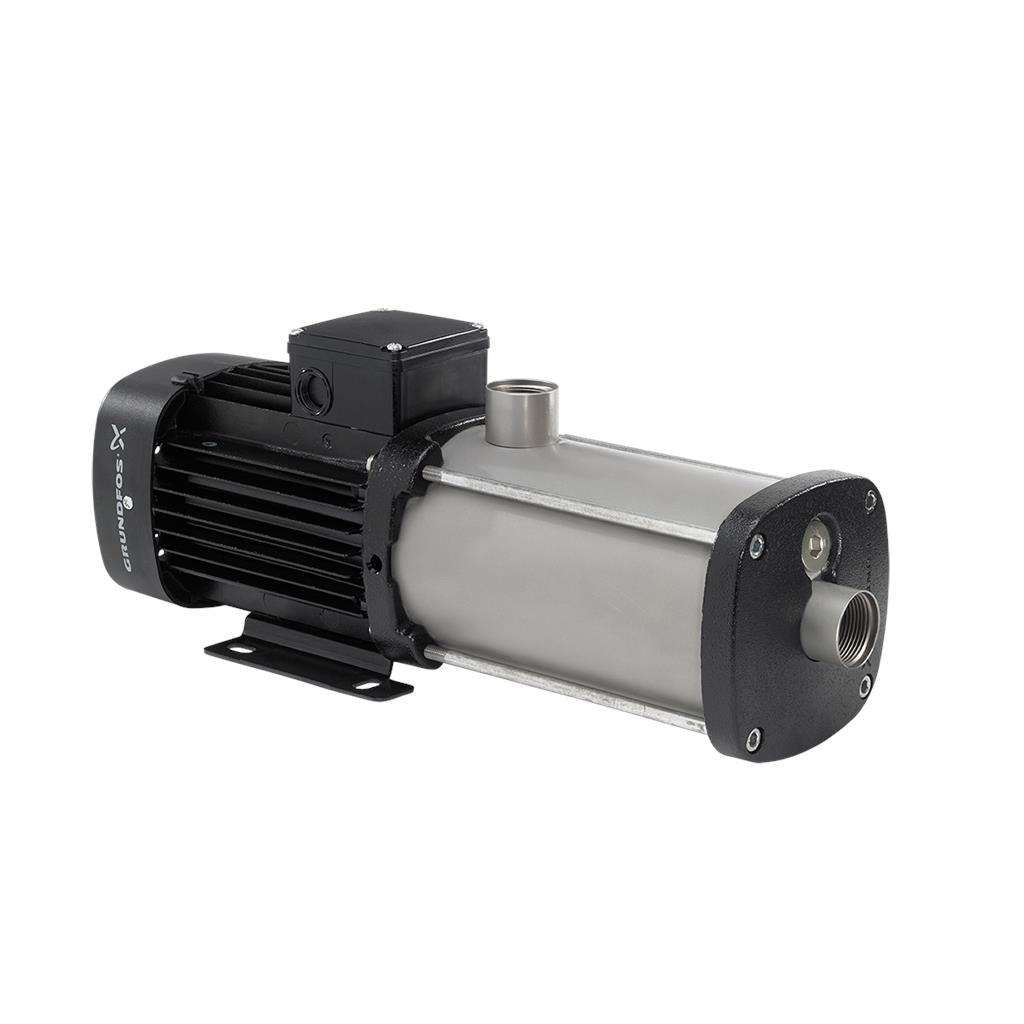

Pompe centrifuge multicellulaire à aspiration axiale, compacte, fiable, horizontale, avec orifice d'aspiration axial et orifice de refoulement radial. Les matériaux de la pompe en contact avec le liquide sont en acier inoxydable. La garniture mécanique est un joint torique non équilibré spécialement conçu. Le raccordement à la tuyauterie est effectué par les filetages Whitworth, Rp (ISO 7/1). La pompe est équipée d'un moteur ventilé asynchrone monté sur pied, 3-phasé.
Specs Table
| Controls: | |
| Frequency converter: | None |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |

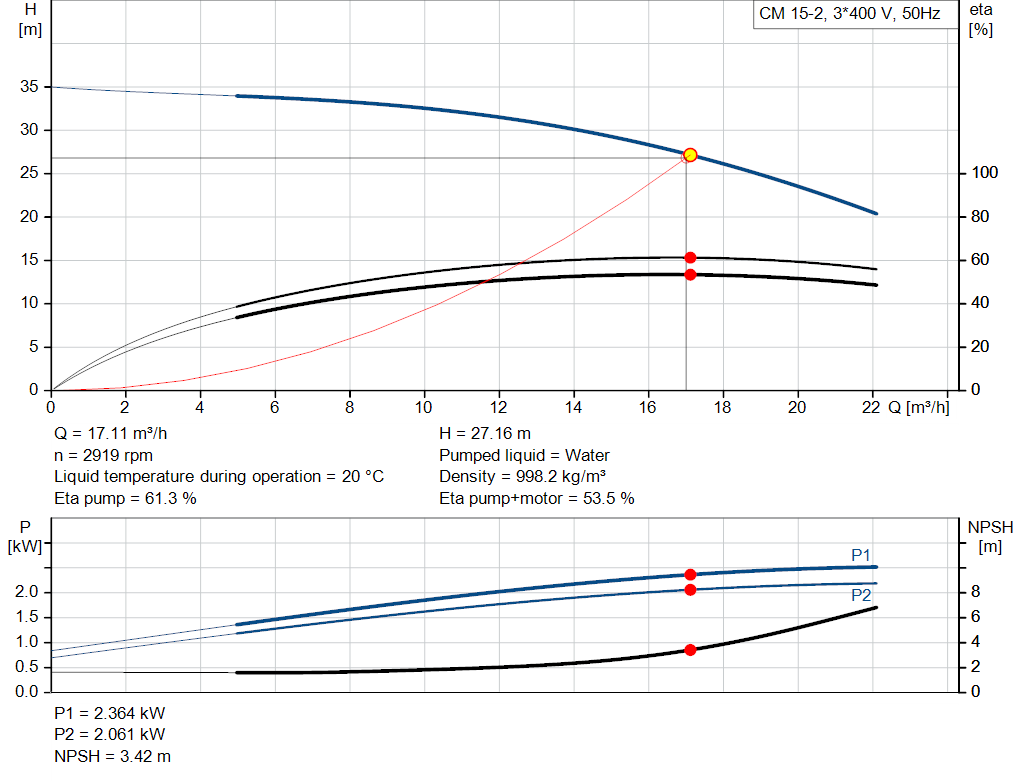

| Rated flow: | 17 m³/h |
| Rated head: | 26.82 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE,EAC,UKCA |
| Approvals for drinking water: | ACS,NSF61,UBA |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Range of ambient temperature: | -20 .. 55 °C |
| Maximum operating pressure: | 10 bar |
| Max pressure at stated temp: | 10 bar / 40 °C |
| 6 bar / 90 °C | |

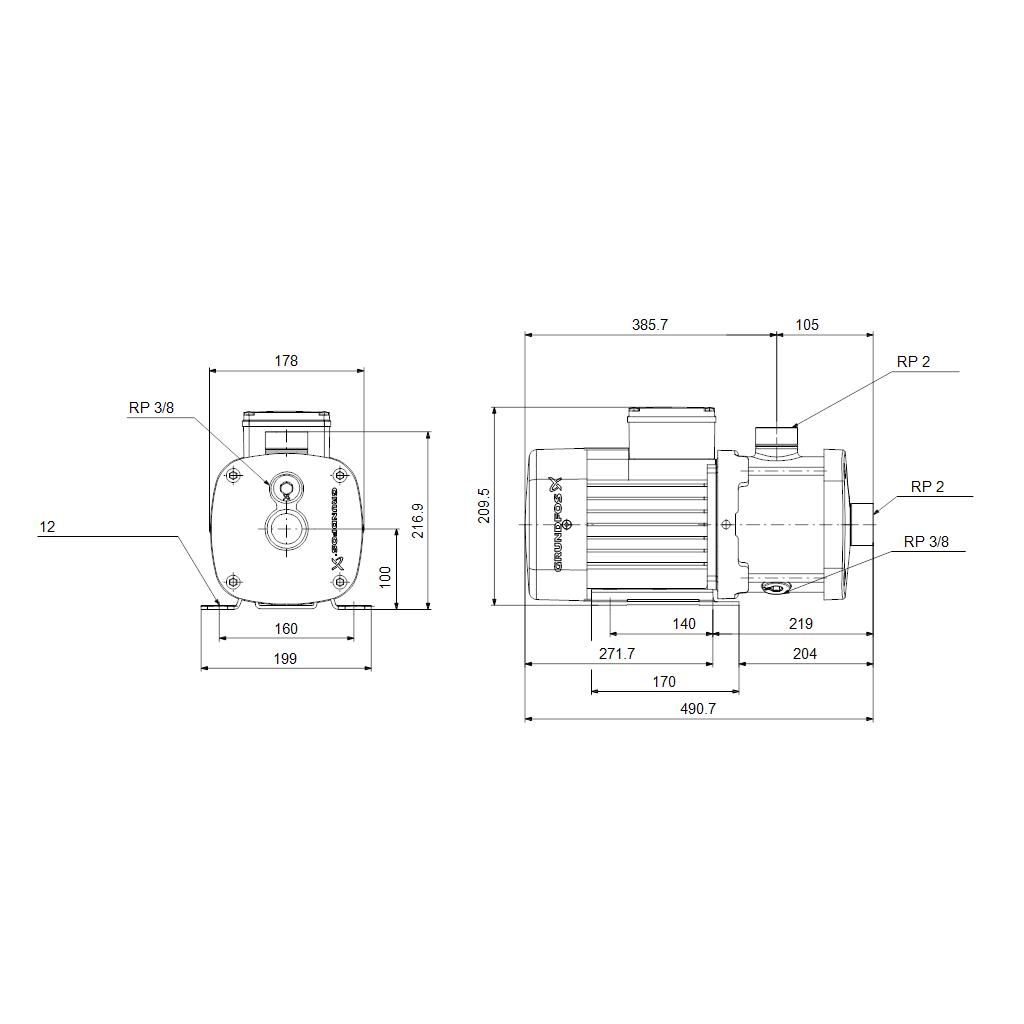

| Type of connection: | Rp |
| Size of inlet connection: | 2 inch |
| Size of outlet connection: | 2 inch |
| Outlet position: | 12 |
| Electrical data: | |
| Motor standard: | IEC |
| Frame size: | 90LE |
| IE efficiency class: | IE3 |

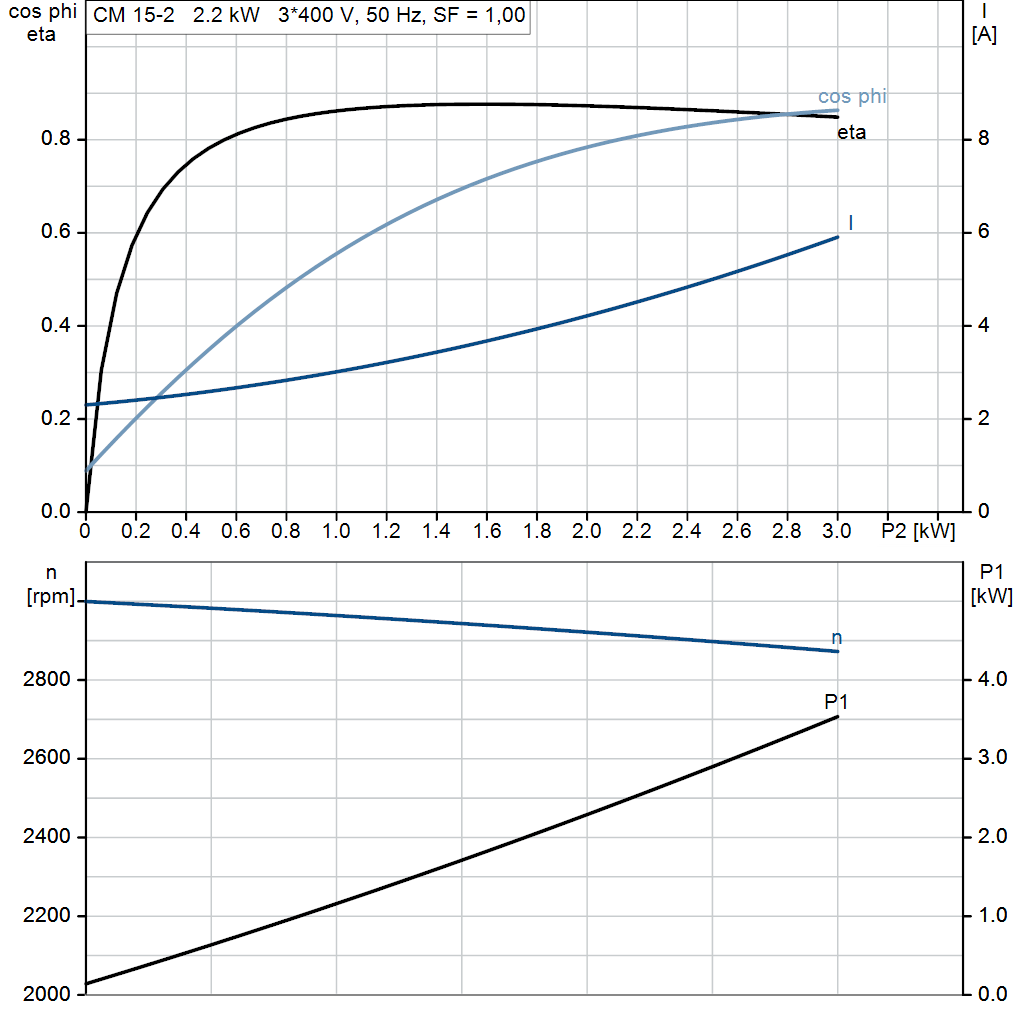

| Rated power - P2: | 2.2 kW |
| Mains frequency: | 50 Hz |
| Suitable for 50/60 Hz (Yes/No): | N |

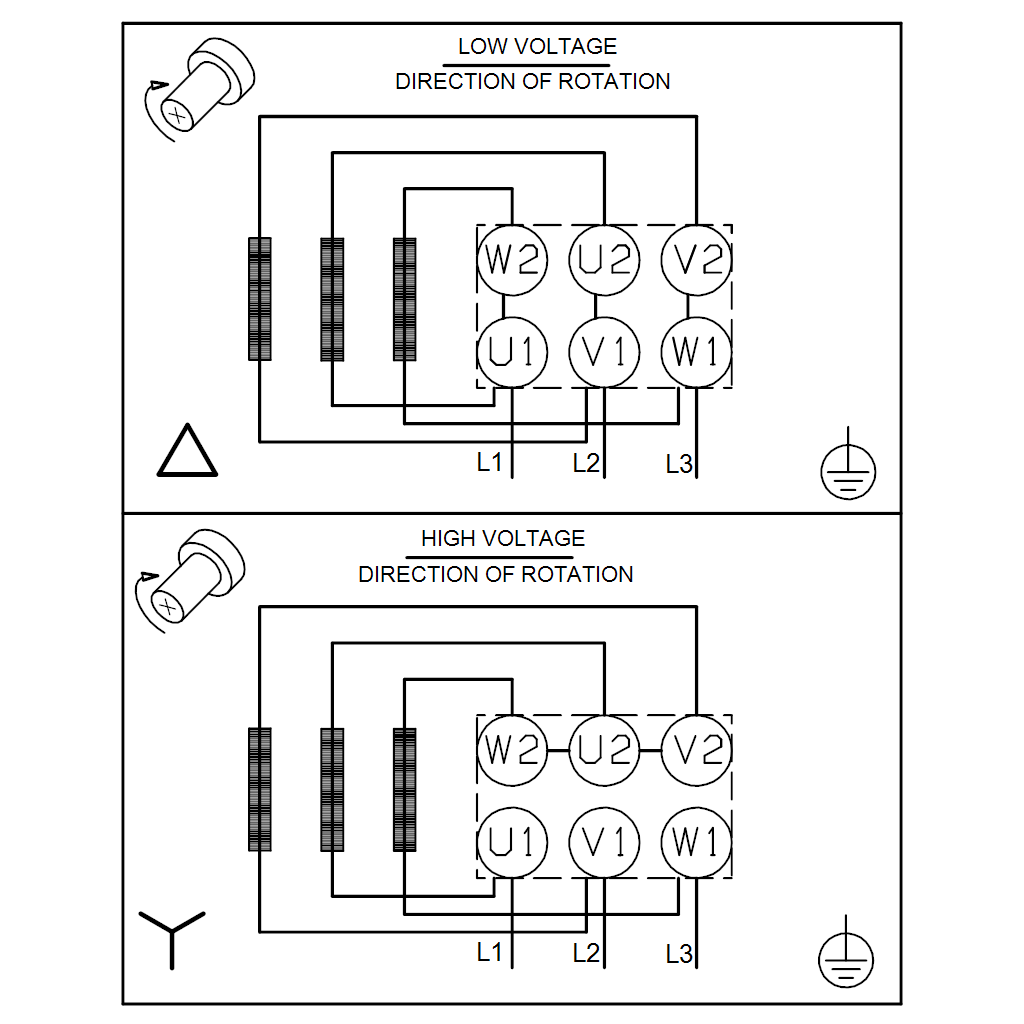

| Rated voltage: | 3 x 220-240D/380-415Y V |
| Service factor: | 1.00 |
| Rated current: | 8.00/4.60 A |
| Starting current: | 840-920 % |
| Rated speed: | 2890-2910 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Cable included (Yes/No): | N |
| Others: | |
| Terminal box position: | 12 |
| Minimum efficiency index, MEI ≥: | 0.59 |
| Net weight: | 29.1 kg |
| Gross weight: | 31.6 kg |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
